Product information
- Application:
Automatic hose reel offers tidiness in the workshop – hose not left lying around, thus reducing the risk of accidents - Hose stop with “Stop at any point” function
- Neat winding of the hose thanks to automatic guidance
- Braked winding to prevent risk of accidents
- Inside diameter of the hose: 10 mm
- Suitable for compressed air or water
- Dimensions: 459 x 378 x 205 mm
- Dimensions (packed): 465 x 400 x 220 mm
- Hybrid polymer hose, black
- Length of connection hose: 0.9 m
- Integrated drill template for mounting on cardboard packaging
- Thread BSPT

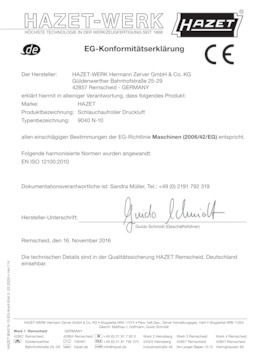

- Meets all relevant requirements defined in the European Directives for Machinery 2006/42/EC
- Optionally usable with HAZET safety coupling 9000-061
- Closed special plastic case, supplied with rotating metal mounting bracket made for separate installation at the workplace
- Borehole spacing of the mounting bracket: 186 mm
Variants
Technical Data
Air connection outlet |
|
Air connection inlet |
|
Thread type air inlet |
|
Hose length | 15 m |
