Product information

  • 6-piece set ∙ in HAZET L-Boxx 136 and soft foam insert:
    Basic unit
    4 nozzles (spoon reflector nozzle angled at 90° ∙ solder reflector nozzle ∙ pipe nozzle ∙ wide slot nozzle angled at 15°)
    Pressure roller 30 mm wide
  • Power: 2300 watts
  • 5 storage functions (air stage / temperature)
  • Optimised flow guidance
  • Digital temperature control (integrated temperature probe)
  • Configurable Power Safety function (Eco mode)
    – Eco 1 movement-triggered Eco function
    – Eco 2 position-triggered Eco function (saves up to 40 % energy and reduces the noise level by up to 50 %)
  • Ceramic heating element
  • Temperature control concept (Close Loop)
  • Soft touch handle area
  • Best ergonomics, even distribution of weight
  • Standby position (standby key):
    When the hash key is pressed, the device swivels to the standby function
  • Long life engine class: 1 kh
  • Temperature range (electronically controlled and continuously adjustable): 80 – 650° C
  • Air volume range (l/min at 20° C: 200 – 55 l/min), electronically controlled and continuously adjustable
  • Complete unit tested for 1000 h

Variants

Loading...

downloads / pdf

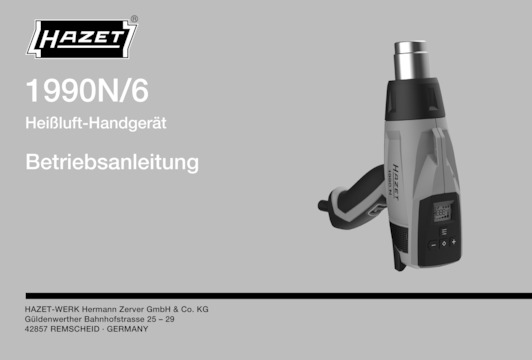

1990n_bedienungsanleitung_operating-instructions.pdf

Operating instructions

show pdf

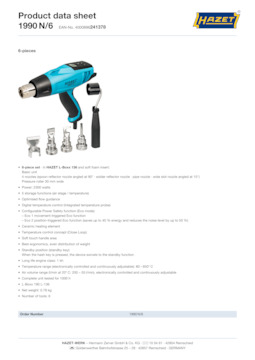

1990n_6_datasheet_en.pdf

Datasheet

show pdf
