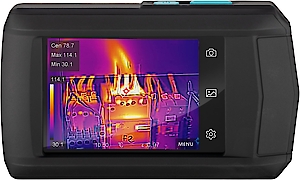

Thermal camera

L x W x H: 139 x 85 x 24 mm

Item number

1992-2

4000896249435

add to comparison

buy now

Product information

Application:
Building diagnostics ∙ electrical installation ∙ sanitary ∙ air-conditioning and heating technology and inspection of engine compartment ∙ brake system ∙ cooling and heating system
Automatic hot, cold and central point measurement
Record videos
Visual camera: 3264 × 2448 pixels (8MP)
Screen size: 3.5 inch LCD touchscreen
Display resolution is 640 x 480 pixels
Thermal (or IR) resolution: 256 x 192 pixels
Temperature measuring range: -20 °C to 400 °C (-4 °F to 752 °F)
Battery life: up to 4 hours
Image modes: Thermal ∙ Optical ∙ Fusion ∙ PIP (picture in picture)
Digital zoom: 1x to 4x
Storage medium: EMMC 16 GB (included in delivery) ∙ up to 60000 images or 10 hours of video material
Additional features: LED light ∙ microphone ∙ buzzer
Hand strap
Image sensor: Vanadium oxide uncooled focal plane arrays (FPA)
Refresh rate: 25 Hz
Thermal sensitivity (Noise Equivalent Temperature Difference, NETD): < 40 mK (0.04 °C)
Measuring accuracy maximum (±2° C ∙ ±2%): Ambient temperatures 15° C – 35° C / Object temperatures above 0° C
Field of view: 37.2° x 50°
