Product information

Work surface

  • 30 mm wood multiplex birch work surface, oiled, replaceable

Drawer concept

  • Self-closing and reciprocal locking of the drawers prevents unwanted opening
  • 100% sliding-out with ball-bearing telescopic slides
  • Drawer design for optimum use of the interior
  • Drawer fronts for optimised handling
  • Dirt-resistant drawer coating for easy cleaning

Body / pull-handle

  • Extremely robust design thanks to double-walled construction
  • Complete welded construction of the entire body for tough daily workshop use
  • Optimised, yielding edge protection on all four corners with real impact protection thanks to internal damping concept
  • Flexible vice assembly (front, right) e.g. HAZET 2175N according to drilling template specification

Locking concept

  • Lateral cylinder lock (replaceable) with two folding keys (adjustable, including serial number) protects the lock and key from damage
  • Highly secure closing system with central locking technology for optimum protection of your property
  • 2-stage locking
    • Central locking, lockable with cylinder lock and 2 folding keys
    • Mutual drawer locking for minimum tilting risk

High performance chassis

  • Large wheels with high loading capacity, precision ball bearing and dual rounded rim in the pivot bearing, easy manoeuvrability, even with high dynamic load
  • 2 swivel castors with dual brake:
    • Braked castors prevent rolling away
    • Braked swivel bearings prevent the swivel castors from turning, e.g. on inclined surfaces
  • Protective ring prevents dirt and threads from getting in
  • “Non-marking” castors leave no marks on the floor and enable smooth running
  • Tool trolley Made in Germany

Variants

Loading...

Technical Data

Number of tools 513
Drawers, high 1 x 166 x 870 x 398 mm
Drawers, flat 6 x 81 x 870 x 398 mm
Drawers total 7
(Drawer) size for plastic drawer insert
  • 5/3+
Drawer dimensions 870 x 398
Dimension 1150 x 600 x 965 mm
Drawer sliding-out %
  • 100%
Drawer guide
  • With ball-bearing telescopic slides
Drawer locking
Drawer lock
  • Central locking with cylinder lock
Worktop
  • Wood multiplex birch, replaceable
Tool trolley impact protection
  • Rubber edge protection protects all four corners of the vehicle
Loading capacity (static) 1000 kg
Total loading capacity (dynamic) 750 kg
Number of swivel castors 2
Diameter of swivel castors 125 mm
Number of fixed castors 2
Diameter of fixed castors 125 mm
Number of castors with brake 2
Colour
  • HAZET blue

partslist

Loading...

downloads / pdf

179nwl_bedienungsanleitung_operating-instructions.pdf

Operating instructions

show pdf

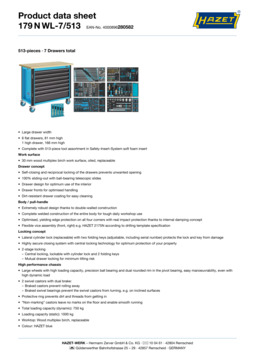

179nwl-7_513_datasheet_en.pdf

Datasheet

show pdf
