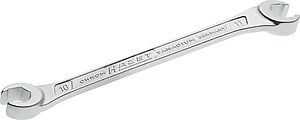

Double box-end wrench ∙ open
Size 10 x 11 mm ∙ 6-point outer profile
1. Manufacturer's recommended list price, dealer prices may vary – prices are subject to change and errors excepted.
1. Non-binding recommended promotional price from the manufacturer as part of the “Special Worldwide” campaign, for example, dealer prices may vary - prices subject to change and errors.
in stock
available again soon
out of stock
Product information
- For tube connections, union nuts and male fittings for pipes
- Heads angled at 15°
- Jaw opening 15° slotted
- Shank with sturdy HAZET double-T-profile
Note: For wrenches for working on brake lines see HAZET 612N
HAZET wrench – high precision tightening and loosening of screw connections
- Long service life due to:
- High-quality chrome vanadium steel
- Compacted material structure from drop forging
- Careful heat treatment
- Correct hardness and dimensional stability as guarantors of wear resistance and high load capacity
- Shape, dimensions and surface design are perfectly coordinated to one another which guarantees functional handling and meets ergonomic requirements
- Slim construction through optimum material composition guarantees sufficient freedom of movement even with hard-to-reach screw connections
- HAZET torque values are considerably higher than the DIN ISO requirements for all wrench sizes – here DIN is the minimum requirement
- Slim open-end and box-end head shape does not reduce the wrench's loading capacity, although this is well below the maximum permissible limit value according to DIN ISO
With 6-point
Variants
Technical Data
| Wrench size | 10 x 11 mm |
| Output |
|
| Standard |
|
| Surface |
|
| Head thickness (a1) | 8 mm |
| Head thickness (a2) | 8.7 mm |
| Head Width (b1) | 20 mm |
| Head Width (b2) | 22 mm |
| Dimension | 147 mm |

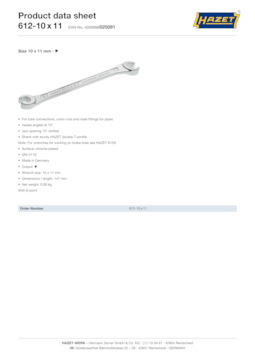

downloads / pdf
