1/2 inch (12.5 mm) square ∙ solid Impact wrench set ∙ 1100 Nm


Product information

  • Loosening torque maximum [N m]: 1100 Nm
  • Extremely compact construction enables working in areas with restricted access
  • One-hand operation for right and left handed operators
  • Exhaust air is guided downwards through the handle
  • Reduced vibrations
  • Easy handling

Extra short – only 92 mm

Variants

Loading...

Technical Data

Loosening torque maximum [N m] 1100 Nm
Output
  • 1/2 inch (12.5 mm) square, solid
Manual/impact operation
  • For impact operation
Tightening torque max N m 678 Nm
Net weight 1.24 kg
Striking mechanism (type)
Air requirement 127 l/min
Forward and reverse
  • three-stage (forward), single-stage (reverse)
Recommended torque 610 Nm
Handle
  • Cold insulated handle
Hose diameter (recommended) 10 mm
Vibration acceleration 9.57 m/s2
Sound pressure level 97.1 dB(A) Lp A
Revolutions per minute 10000
Thread type air inlet
  • BSPT
Air connection inlet
  • Inside thread 12.91 mm (1/4″)
Loosening torque (max) determined with screw size M 16 M
Coupler plug
  • Nominal size 7.2 (included)
Sound power level 108.1 db(A) Lp W
Air requirement [l/sec] 2.1 l/sec
Working pressure (bar) 6.3 bar

partslist

Loading...

downloads

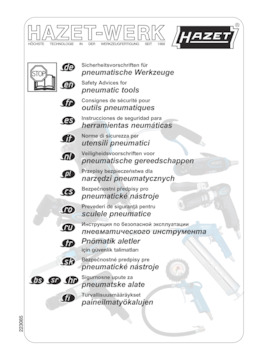

9000_sicherheitshinweis_safety_instructions_pneumatik-werkzeuge_de_en_fr_es_nl_it_pl_cz_ro_ru_tr.pdf

safety instructions
