Product information

  • Very handy for easy transport - carrying strap for mobile use
  • Cordless dry vacuum cleaner ∙ 18 V
  • Basic unit ∙ without battery ∙ without charger
  • High-performance turbine ensures high suction power and high underpressure: This produces an excellent suction result
  • By activating the manual filter cleaning function, the filter element is freed from deposited dust by a targeted blast of air
  • Optimised cleaning and increased filling level of the container thanks to flat pleat filter
  • Dust class L
  • Filter area: 3000 cm2
  • 6 l container capacity
  • Accessories storage thanks to integrated holders on the suction head
  • Compact hose ⌀ 32 mm ∙ extendable from 0.5 m to 2.5 m
  • Fittable chassis available as an accessory
  • Eco mode – extends the battery life to up to 30 minutes at a maximum underpressure of 12000 Pa
  • Operating time with 5 Ah battery pack 15 mins at max. power
  • Maximum underpressure: 12000 Pa
  • Without suction control
  • Number of suction motors: 1
  • LED battery capacity display on battery pack
  • Compatible with all 18 V battery packs in the 9500 system
  • Battery recommendation: HAZET 9500-05
  • Weight (without battery): 3.3 kg

Variants

Loading...

Technical Data

Battery voltage [V] 18 V
Width 200 mm
Height 400 mm
Rechargeable battery / battery replaceable Ja
Dimension 240 x 200 x 400 mm
ElektroG [Electrical and Electronic Equipment Act] – weight to be reported 3.30 KG
Battery category under the German Electrical and Electronic Equipment Act (ElektroG)
  • Device battery
ElektroG [Electrical and Electronic Equipment Act] device category / type of use
  • Category 5 – Small equipment 50 cm or less / B2C
Batteries/Rechargeable batteries required for operation Ja

downloads / pdf

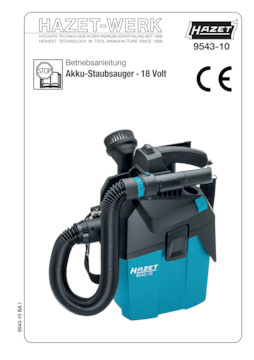

9543-10_bedienungsanleitung_operating-instructions.pdf

Operating instructions

show pdf

9543-10_konformitaetserklaerung_declaration_of_conformity_de_en_es_fi_fr_it_tr.pdf

declaration of conformity

show pdf

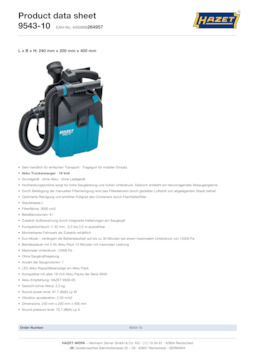

9543-10_datasheet_en.pdf

Datasheet

show pdf
