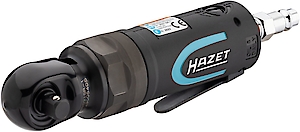

3/8 inch (10 mm) square ∙ solid Impact ratchet
Length: 158 mm ∙ 3/8 inch square ∙ solid ∙ Powerful twin hammer mechanism
Product information
- Application:
Use in constricted spaces - Maximum occupational safety thanks to reaction-free striking mechanism
- Low-impact
- Rubber ratchet head protective cover to protect against shocks and penetration by dirt
- For hand retightening with torque values: 260 Nm
Variants
Technical Data
| Manual/impact operation |
|
| Tightening torque maximum | 68 Nm |
| Output |
|
| Net weight | 0.67 kg |
| Striking mechanism (type) |
|
| Air requirement | 68 l/min |
| Forward and reverse |
|
| Dimensions | 158 mm |
| Handle | |
| Hose diameter (recommended) | 10 mm |
| Vibration acceleration | 9.84 m/s2 |
| Length | 158 mm |
| Sound pressure level | 82 dB(A) Lp A |
| Revolutions per minute | 500 |
| Air connection inlet |
|
| Coupler plug |
|
| Sound power level | 93 db(A) Lp W |
| Air requirement [l/sec] | 1.1 l/sec |
| Working pressure (bar) | 6.3 bar |
