Product information

HAZET wrench – high precision tightening and loosening of screw connections

  • Long service life due to:
    • High-quality chrome vanadium steel
    • Compacted material structure from drop forging
    • Careful heat treatment
  • Correct hardness and dimensional stability as guarantors of wear resistance and high load capacity
  • Shape, dimensions and surface design are perfectly coordinated to one another which guarantees functional handling and meets ergonomic requirements
  • Slim construction through optimum material composition guarantees sufficient freedom of movement even with hard-to-reach screw connections
  • HAZET torque values are considerably higher than the DIN ISO requirements for all wrench sizes – here DIN is the minimum requirement
  • Slim open-end and box-end head shape does not reduce the wrench's loading capacity, although this is well below the maximum permissible limit value according to DIN ISO

Variants

Loading...

Technical Data

Wrench size 1932 x 1116
Output
  • Outside 12-point profile
Standard
  • ISO 1085
Surface
  • chrome-plated, head polished
Head thickness (a1) 10.8 mm
Head thickness (a2) 11.5 mm
Head Width (b1) 22.7 mm
Head Width (b2) 26.5 mm
Offset (height) 29 mm
Dimension 255 mm
metric/imperial
  • American dimensions

downloads / pdf

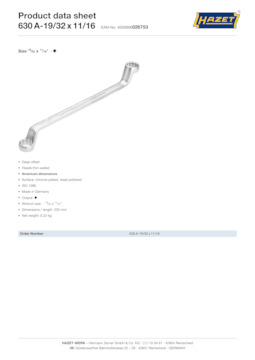

630a-19_32x11_16_datasheet_en.pdf

Datasheet

show pdf
