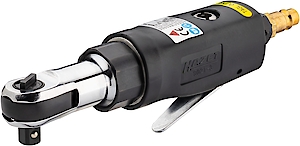

3/8 inch (10 mm) square ∙ solid Air ratchet


Product information

  • Reduced vibrations

Variants

Loading...

Technical Data

Tightening torque max N m 35 Nm
Output
  • 3/8 inch (10 mm) square, solid
Net weight 0.5 kg
Air requirement 180 l/min
Forward and reverse
  • single-stage (right/left)
Dimensions / length 179 mm
Handle
  • Cold insulated handle
Vibration acceleration 3.30 m/s2
Length 179 mm
Sound pressure level 83 dB(A) Lp A
Revolutions per minute 170
Air connection inlet
  • Inside thread 12.91 mm (1/4″)
Coupler plug
  • Nominal size 7.2 (included)
Sound power level 89 db(A) Lp W
Air requirement [l/sec] 3 l/sec
Working pressure (bar) 6.3 bar

downloads

9020-9022_bedienungsanleitung_operating-instructions_de_en.pdf

Operating instructions

show pdf

9021-3_ersatzteilliste_spare-parts.pdf

spare parts

show pdf

9020-9022_konformitaetserklaerung_declaration_of_conformity.pdf

declaration of conformity

show pdf

9000_sicherheitshinweis_safety_instructions_pneumatik-werkzeuge_de_en_fr_es_nl_it_pl_cz_ro_ru_tr.pdf

safety instructions

show pdf
