1⁄4″ HiPer fine-tooth reversible ratchet for screwdriver bits ∙ with bit extractor ∙ fine-tooth
Length: 116 mm ∙ 1/4 inch hexagon ∙ hollow
Product information
- Application:
Small operating angle (4 ) enables use in the tightest of spaces, e.g. engines, machine construction, agricultural vehicles and devices, renewable energy (solar, wind turbines) - Bit extractor – makes it easier to remove screwdriver bits with moist or oily fingers and when using gloves
- Innovative design combined with push-button-like function thanks to self-springing element
- Latching function of the shift lever provides protection against unwanted switching
- Increased service life thanks to the use of state-of-the-art lubricants in the ratchet mechanism
- Strict production tolerances prevent dirt from getting in
- HAZET internal quality standards guarantee loading capacity far beyond the standard requirements
- Chrome-plated surface: High-quality, easy to clean, corrosion resistant
- Integrated suspension option in the handle
- VPA tested, static torque according to DIN 3122: 120 Nm (DIN: 62 Nm)
- Made in Germany
- HiPer – The Original
- Developed and produced "Made in Germany"
- Static AND dynamic – double precision in perfection
- High permanent load for durability
- Ergonomic shift lever
Variants
Technical Data
| Manual/impact operation |
|
| Output |
|
| Number of teeth | 90 teeth |
| Opening angle | 4 ° |
| Design drive / output |
|
| Handle |
|
| Dimension | 116 mm |

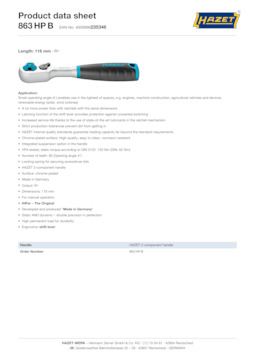

downloads / pdf
