Adapter set for clamping screw on VW / AUDI multi-link axle
3-pieces
1. Manufacturer's recommended list price, dealer prices may vary – prices are subject to change and errors excepted.
1. Non-binding recommended promotional price from the manufacturer as part of the “Special Worldwide” campaign, for example, dealer prices may vary - prices subject to change and errors.
in stock
available again soon
out of stock
Product information
- Application:
Removal of the clamping screw on VW ∙ AUDI multi-link axles without effort - Socket with HAZET compressed air injector impact extractor set 9098/24 – please observe spatial requirements – Compatibility depends on control arm design and screw position
- For AUDI A4 / A6 / Q5 / Q7 (all model years)
VW Passat 3B model year 1996 → 2001 ∙ Touareg model year 2010 →
Contents:
- 9098-F4
- Length: 40 mm ∙ width: 30 mm ∙ opening / fork width: 12 mm
- 9098-F5
- Drive inside thread: M14 x 1.5 ∙ outer s 22 mm
- Output inside thread: M10 x 1.5 ∙ ⌀ 17 mm
- Surface: burnished
- Made in Germany
Variants

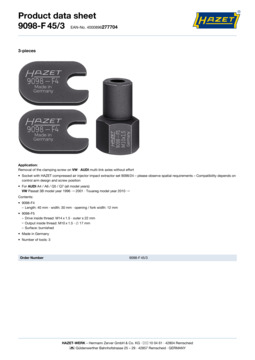

downloads / pdf
