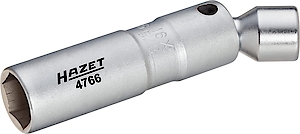

3/8 inch (10 mm) square ∙ hollow Spark plug spanner ∙ Outside hexagon profile ∙ 16 mm ∙ 5/8″
Size 16 mm ∙ 5/8″ ∙ 3/8 inch square ∙ hollow ∙ Outside hexagon profile ∙ Form A
Product information
- Application:
Spark plug changing (C plugs) (Ä 5⁄8″ (16 mm) - Short style
- On e.g. Motorcylces, BMW C1 ∙ KAWASAKI ∙ YAMAHA ∙ HONDA ∙ SUZUKI ∙ DUCATI
MERCEDES-BENZ passenger cars e.g. A-Class (type 168 ∙ 169) ∙ B-Class (type 245) ∙ SMART (type 451)
IVECO Daily with gas engine F1A 2.3 l ∙ F1C 3.0 l - With fixing clamp for a firm hold of the spark plug
- Angular movement ± 25°
- Made in Germany
Stainless and insensitive to heat
Largest possible clearance of insulator
6 spring elements – firm hold of the spark plug
Damping of transverse motion
Variants
Technical Data
| Design ∙ Special feature |
|
| Output |
|
| Wrench size | 16 mm ∙ 5⁄8″ |
| Drive |
|
| metric/imperial |
|
| Manual/impact operation |
|
| Diameter d1 (output side) | 21.4 mm |
| Diameter d2 (drive side) | 18 mm |
| Hinge / bent shape |
|
| Design drive / output |
|
| Surface |
|
| Depth | 10 mm |
| Length | 97 mm |

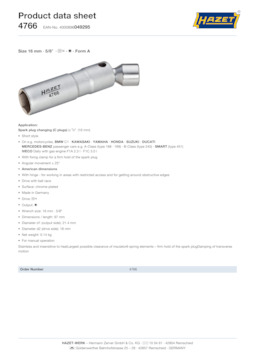

downloads / pdf
