Product information

  • Application:
    UV light for faster and clearer localisation of leaks
  • Highly efficient light output of up to 800 lumens - Light range of up to 150 metres
  • Swivelling head (90°) for different light angles
  • 2 brightness levels: 50%/100%/ UV (long button press for UV light)
  • Aluminium housing (black anodised) stops dust and splash water entering the internal parts (IP44)
  • 2-in-1 button for charging and status display:
    charging display:
    • Solid green (fully charged)
    • Flashing green (charging in progress)
  • Status display:
    • Solid blue (battery capacity OK)
    • Flashing blue (approx. 10% battery capacity)
  • High-quality pen clip
  • Strong holding magnet
  • Dimensions (⌀ x H): 30.5 x 146 mm
  • Weight: 165 g (including 1x 3.7 V – 2600 mAh Li-ION rechargeable battery)
  • The on/off switch is easy to operate – even when wearing gloves
  • Rotatable charging port cover
  • Operating/storage conditions: -20° C to +60° C

Variants

Loading...

Technical Data

Luminous flux 100% 800 lm
Power supply
  • USB cable (USB C)
Operating time 100% 3 h
Battery / rechargeable battery chemical composition
  • Lithium ions / Li-Ion
Battery dangerous goods UN Number
  • UN 3481 – Lithium-ion batteries packed in the device
Protection rating (IK)
Type of protection (IP)
  • IP44
LED technology
  • 395 nm UV
  • XPG4
ElektroG [Electrical and Electronic Equipment Act] – weight to be reported 0.17 KG
Battery category under the German Electrical and Electronic Equipment Act (ElektroG)
  • Device battery
Dimension 146 mm
ElektroG [Electrical and Electronic Equipment Act] device category / type of use
  • Category 3 – Lamps
Battery type
  • Secondary battery (rechargeable / storage battery)
Charging time 5 h
Battery name
  • Lithium-ion rechargeable battery
Battery weight 46.00 G
Number of batteries 1 ST
Range of light 150 m
Battery weight class III
Batteries/Rechargeable batteries required for operation Ja

downloads / pdf

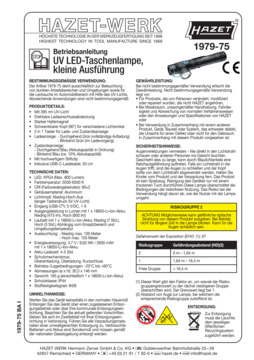

1979-75_bedienungsanleitung_operating-instructions_de_en.pdf

Operating instructions

show pdf

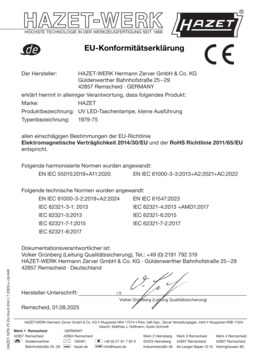

1979-75_konformitaetserklaerung_declaration_of_conformity_de_en_fr_it.pdf

declaration of conformity

show pdf

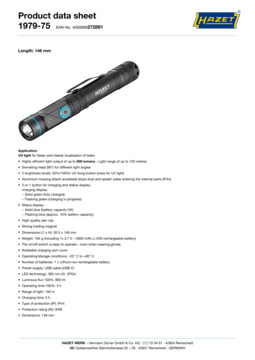

1979-75_datasheet_en.pdf

Datasheet

show pdf
