1/2 inch (12.5 mm) square ∙ hollow Injection line spanner ∙ Outside 12-point profile ∙ 22 mm


Product information

  • Application:
    Operation of the union nut on the high-pressure line on the MAN injection valve common rail injection system
  • Proper operation of the injection line screw connection
  • j Drive 12.5 = 12
  • Open double hexagon socket for injection lines
  • The tightening torque required by the manufacturer is achieved by using a HAZET torque wrench (observe manufacturer specifications)
  • Made in Germany

Variants

Loading...

Technical Data

Output
  • Outside 12-point profile
Wrench size 22 mm
Drive
  • 1/2 inch (12.5 mm) square, hollow
Manual/impact operation
Diameter d1 (output side) 32 mm
Diameter d2 (drive side) 33 mm
Surface
  • burnished
Depth 21 mm
Length 85 mm
Länge Aussparung la [mm] 44 mm

downloads / pdf

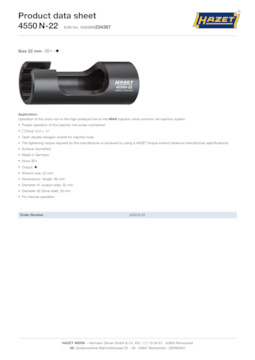

4550n-22_datasheet_en.pdf

Datasheet

show pdf
